2.0mm Galvanized Canopy & 80 kg/m³ Rockwool
Suppresses mechanical engine clatter and exhaust resonance to 62–68 dBA @ 7m for Dubai Municipality residential compliance.
PILLAR 03 Acoustic, Thermal & Civil Defence Compliance
Dubai Generator Rental Guide & Technical Specs: Acoustic, Thermal & DEWA Rules
Dubai Generator Rental Guide documents verified dubai generator rental specs for Perkins, Cummins, and Caterpillar diesel gensets, including ISO 8528-1 50°C thermal derating, 62–76 dBA super-silent acoustic attenuation, and Dubai Civil Defence 110% bunded fuel containment.
02 Acoustic Canopy Engineering • dBA @ 7 Meters
What Acoustic dBA Attenuation & Canopy Specs Are Required Across Dubai Zones?

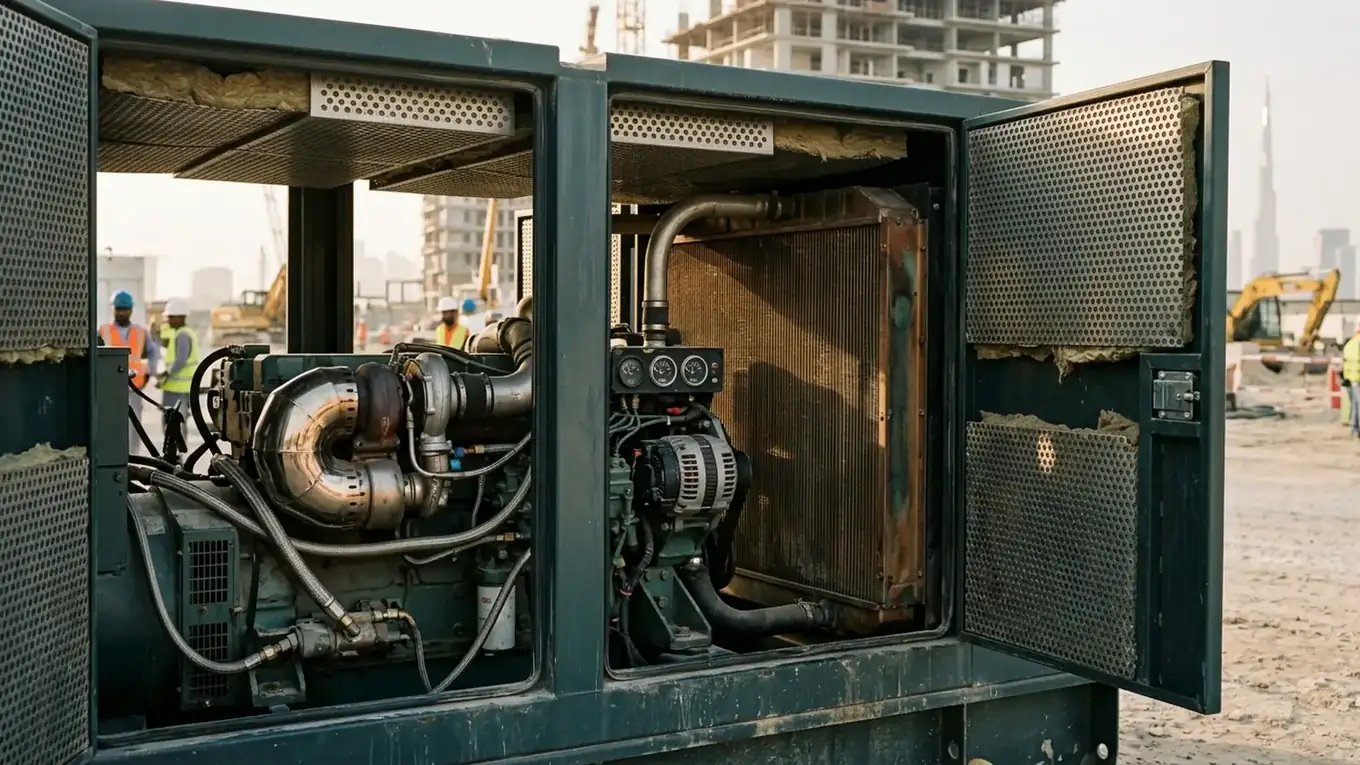

Dubai Generator Rental Specs mandate heavy-gauge 2.0 mm electro-galvanized steel canopies lined with 80 kg/m³ high-density rockwool and fire-retardant acoustic foam baffles to suppress engine mechanical clatter and exhaust pulsation. If a generator is stationed near villas in Palm Jumeirah or hotels in Downtown Dubai, then super-silent residential muffler chambers keep free-field emissions between 62 dBA and 68 dBA at 7 meters.
✨ AI Visual • Verified by UAE Power Desk
Free-Field Sound Pressure Decay & Boundary Setback Rules
Every genset in our dubai generator rental guide undergoes factory and pre-dispatch sound pressure testing at 4 cardinal points located 7.0 meters from the canopy perimeter and 1.5 meters above ground grade. When positioning generators inside walled compounds or adjacent to reflective glass facades in DIFC or Dubai Marina, acoustic reflections can add +3.0 dBA to +4.5 dBA, requiring either increased setback distance or supplementary portable acoustic barrier panels.
Equation 3 — Inverse-Square Acoustic Distance Attenuation (dBA):
Where L_p1 is the certified canopy noise rating at reference distance r_1 = 7.0 m, and L_p2 is the resulting sound pressure level in dBA at receptor setback distance r_2.
| Dubai Operational Zone | Authority Jurisdiction | Max Acoustic Limit (@ 7m) | Dispatch SLA | Primary Generator Frame & Spec Requirements |
|---|---|---|---|---|
| Al Quoz Industrial Area (1–4) | DM-IND-AQ04 | ≤ 70 dBA | 90 mins | Batching Plants, Cold Storage & Factory Shutdowns — Recommended: 250 kVA |
| Jebel Ali Free Zone (JAFZA) & Port | TRK-JAFZA-S2 | ≤ 75 dBA | 105 mins | Container Terminal Cranes, Cold-Chain Logistics & Ship-to-Shore — Recommended: 1000 kVA |
| Dubai Investment Park (DIP) & DIC | DM-IND-DIP2 | ≤ 72 dBA | 120 mins | District Cooling Backup, Extrusion Lines & Data Centers — Recommended: 500 kVA |
| Downtown Dubai, DIFC & Marina | DM-COM-DT01 | ≤ 65 dBA | 135 mins | High-Rise Tower Fit-Outs, Luxury Events & Retail Standby — Recommended: 100 kVA |
| Dubai South, DWC Airport & Expo City | DACC-DS-09 | ≤ 72 dBA | 150 mins | Concourse Infrastructure, Dewatering Arrays & Aviation Hangars — Recommended: 1250 kVA |
ACOUSTIC & THERMAL ATTENUATION X-RAY COMPARISON
Open-Skid Rig (96 dBA / 40°C Core) vs Super-Silent Canopy (64 dBA / 55°C Tropical Core)
X-Ray Split: 50% -32.0 dBA Noise Suppression • +15°C Summer Cooling Margin
3D ISOMETRIC CAD CUTAWAY • 4-LAYER MECHANICAL & ACOUSTIC ASSEMBLY
Inspect 55°C Tropical Radiator, 80 kg/m³ Rockwool Canopy & 110% Bunded Base Skid
55°C High-Ambient Brass-Finned Radiator Core
Prevents high-coolant-temperature shutdowns during July–August 50°C+ peak ambient shifts in Al Quoz, DIP, and Dubai South.
Perkins / Cummins Block + Brushless PMG Alternator
Class H insulated Stamford/Leroy-Somer alternator with ±0.5% electronic AVR voltage regulation and Deep Sea DSE8610 telemetry.
110% Civil Defence Double-Wall Bunded Fuel Skid
Integrated secondary spill containment, fork-lift pockets, certified HIAB lifting eyes, and optical bund-leak float switch.
03 Perkins vs Cummins vs Caterpillar • Civil Defence Fuel Code
How Do Perkins, Cummins & Caterpillar Engine Specs Compare for 24/7 Prime Operation?
Selecting the right prime mover in our dubai generator rental guide depends on load duty cycle, harmonic distortion tolerance (THD < 2.0% for sensitive servers and LED walls), and continuous desert ambient cooling margin.
Perkins 1100 & 1500 Series Specs
Engineered with 3-, 4-, and 6-cylinder turbocharged aftercooled diesel blocks, mechanical or electronic ADEM A4 governing, and Leroy-Somer TAL / Stamford UCI274 alternators. Ideal for telecom nodes, villa standby, retail fit-outs, and medium tower crane packages with 62–70 dBA super-silent enclosures.
Specific Fuel Burn: 5.3 L/hr (20 kVA) to 56.5 L/hr (350 kVA) @ 75% LoadCummins 6BT, KTAA19 & KTA38 V12 Specs
Heavy-duty wet-liner industrial blocks equipped with Stamford HCI544 / LVI634 brushless PMG alternators (class H insulation) and tropical 55°C skid radiators. Delivers superior single-step block load acceptance for high-inrush batching plants, tunneling machines, and district cooling chillers.
Specific Fuel Burn: 16.5 L/hr (100 kVA) to 158.0 L/hr (1000 kVA) @ 75% LoadCaterpillar 3512B 20-Foot Acoustic Container
Containerized V12 twin-turbocharged prime power plant featuring Deep Sea DSE8610 multi-set load-sharing controllers, motorized ABB / Schneider 2000A air circuit breakers (ACB), automatic fuel transfer pumps, and dual 24V heavy-duty starter banks for N+1 utility microgrids.
Specific Fuel Burn: 198.5 L/hr @ 75% Load • 1804.2 Amps @ 400V DM-IND-AQ04 • MUNICIPALITY & DEWA FIELD TELEMETRY
Al Quoz Industrial Area (1–4)
Primary Site Profile: Batching Plants, Cold Storage & Factory Shutdowns
DEWA 400V LV synchronization + BS 7671 earthing rod (< 5.0 Ohms) in compacted sand.
Summer Peak Ambient 49°C
Max Boundary Noise ≤ 70 dBA
Recommended Frame 250 kVA
HIAB Dispatch SLA 90 mins (Depot Adjacent)
DUBAI CADASTRAL LOGISTICS & MUNICIPALITY NOISE ZONING MAP
E11 & E311 Heavy Transport Corridors Click Any Dubai Operational Zone to Inspect Acoustic dBA Limits, Peak °C & HIAB Crane SLA
TRK-JAFZA-S2 • ACTIVE CADASTRAL SECTOR
Jebel Ali Free Zone (JAFZA) & Port
Trakhees EHS + Civil Defence Ch. 9 double-walled bunded 2,000L bulk fuel bowser.
Summer Design Temp 50°C
Max Acoustic Limit ≤ 75 dBA
Primary Fleet Spec 1000 kVA Cummins
HIAB Mobilization 2.5 hrs via E11
FIELD COMMISSIONING PROTOCOL • AL QUOZ DEPOT TO SITE MDB
ISO 8528-1 & BS 7671 Field SOP How Our 4-Stage Turnkey DEWA & Civil Defence Mobilization Works
STEP 01 • T-MINUS 0 MIN 10/10 Formula Audit
50°C Thermal & Motor Surge Audit
Verify active kW, power factor (0.80), DOL/Star-Delta/VFD crane or pump inrush, and ISO 8528-1 50°C derating margin before frame selection.
STEP 02 • T+45 MIN 90–150 Min UAE SLA
HIAB Crane & Bunded Tank Dispatch
Mobilize soundproof Perkins or Cummins canopy from Al Quoz depot via HIAB crane truck alongside a 110% double-walled Civil Defence fuel tank.
STEP 03 • T+90 MIN DEWA LV Compliant
400V Camlock & <5.0 Ω Earth Pit
Terminate H07RN-F flexible single-core copper cables into the site MDB/ATS, calibrate 100mA ELCB protection, and megger-test copper earthing rods.
STEP 04 • T+120 MIN 24/7 Prime Operation
DSE8610 Load-Bank & Sync Handover
Execute stepped resistive/inductive load acceptance testing, verify <4.0% feeder voltage drop, and activate automated ADNOC diesel bowser telemetry.
04 Sister Engineering Pillars & Technical FAQs
Explore Connected Sizing Calculators & Commercial Rate Matrices
Master Dubai Generator Rental Online Hub
Browse the complete 20 kVA to 1250 kVA diesel fleet with live interactive search and 10/10 verified mathematical test fixtures.
Open dubai generator rental online →Dubai Generator Rental Calculator
Calculate 400V 3-phase amperage, DOL/Star-Delta/VFD motor starting surges, and cable voltage drop across our load chart.
Launch dubai generator rental calculator →Online Dubai Generator Rental Pricing
Evaluate daily, weekly, and monthly AED generator rental rates alongside 30-day diesel fuel TCO and N+1 synchronization tradeoffs.
Compare online dubai generator rental →What acoustic dBA sound limits apply in the Dubai Generator Rental Guide for residential vs industrial zones? +
Under Dubai Municipality Environmental Noise Technical Guidelines, residential and hospitality zones (Palm Jumeirah, Downtown Dubai, Emirates Hills, Jumeirah) require ≤65 dBA daytime and ≤55 dBA night-time at the boundary. Heavy industrial zones (Jebel Ali Free Zone, Al Quoz, DIP) permit up to 75 dBA @ 7m.
What are the Dubai Generator Rental Specs for Perkins vs Cummins vs Caterpillar diesel engines? +
Perkins 1100 and 1500 Series engines power our 20 kVA to 350 kVA fleet with compact footprints and low part-load fuel consumption. Cummins KTAA19-G6A and KTA38-G5 engines drive our 500 kVA and 1000 kVA heavy prime fleet with high-ambient 55°C radiators, while Caterpillar 3512B powers our 1250 kVA synchronization grid flagships.
What does Dubai Civil Defence require for external diesel fuel tanks and bunded containment? +
Dubai Civil Defence Fire and Life Safety Code requires any external bulk diesel fuel tank (1,000L to 10,000L) connected to a temporary generator to feature double-walled steel construction with 110% secondary spill bund containment, mechanical overfill prevention valves, hydrostatic level gauges, and automatic fire drop-weight shutoff valves.
How does inverse-square acoustic attenuation reduce generator noise over distance? +
In free-field outdoor propagation, sound pressure level decreases by approximately 6.0 dBA for every doubling of distance from the acoustic canopy exhaust louvers: Lp(d2) = Lp(d1) - 20 log10(d2 / d1). A generator rated at 68 dBA at 7 meters drops to 62 dBA at 14 meters and 56 dBA at 28 meters.
What protection relays and earthing specifications are required for DEWA LV inspection? +
DEWA Low Voltage (400V/230V, 50Hz) temporary power inspections require a 4-pole Moulded Case Circuit Breaker (MCCB), adjustable Earth Leakage Circuit Breaker (ELCB / RCD set between 30mA and 300mA), mechanical and electrical interlock on any Automatic Transfer Switch (ATS) to prevent utility back-feeding, and a dedicated copper earth pit below 5.0 Ohms.
Technical Summary (Dubai Generator Rental Guide & Specs — /specifications-guides/): Establishes acoustic sound pressure limits (62–76 dBA @ 7m), ISO 8528-1 50°C thermal derating protocols, Dubai Civil Defence 110% bunded diesel tank standards, and Perkins/Cummins/Caterpillar prime mover specifications audited by the UAE Power Engineering & Construction Equipment Standards Desk.
